| Model No.: |
RTD-3 |
Protect Wavelength: |
630-660nm & 800-1100nm |
| Transmittance: |
35% |
OD Value: |
OD2+@630-660nm & OD5+@800-1100nm |
| Material: |
Polycarbonate |
Suit for: |
635nm, 660nm, 808nm, 980nm etc., |
| L-Rating: |
630-660nm DIR LB2& 800-1100nm DIR LB5 |
Application: |
Red Laser, 808nm 980nm Diodes |

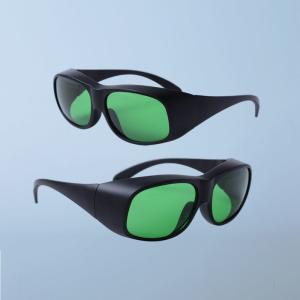

The laser safety glasses can not be use against other kind of lasers rather than the above mentioned wavelength. LaserPair recommends that you wear laser safety glasses when the laser class is greater than Class 1. Choose different laser safety glasses according to different laser wavelengths and working environments.
Advantage:
1. Special for ergonomics, harmlessness, comforts, airing and flexibility
2. Safety glasses with wrap-around design
3. Flank with unique ventilation and protection system, protect eyes from splashing all-round.
4. Stable, clear and flexible PVC curved body, fits the face.
Related Products:
Our factory laser safety glasses strictly according to ANSI Z136 and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.
| Normal Type |
Typical For |
Transmittance |
O.D |
L-Rating |
| GTY |
532&1064nm |
30% |
200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ |
315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 |
635&808nm&980nm |
35% |
630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ |
630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 |
635&905nm&980nm |
37% |
630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ |
630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY |
755&808&1064nm |
40% |
740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ |
740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY |
980&1064&1320nm |
40% |
800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ |
800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP |
High Power 808&980&1064nm |
60% |
800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ |
800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP |
10600nm |
90% |
9000-11000nm O.D 6+ |
9000-11000nm DI LB3 |
| IPL |
200 – 1400nm |
10% |
IPL Machine |
|
| YLW |
1064nm Laser Window |
40% |
800 -1100nm O.D 4+ & 1064nm O.D 6+ |
1064nm DIR LB5 |
Packing Details:
OEM/ODM service is available to us.
Professional gift box.
FAQ:
1. Are you a manufactuer or trading company?
We are a manufactuer specialized in laser safety field over 10 years.
2. How is your product quality?
We have the guarantee from the material,even every procedure,
3. Can you make sure all of the products consistent?
Yes,we have passed the ISO9000 certification,CE all products will be as good as the samples.
4. How to proceed an order for glasses ?
Firstly let us know your requirements or application;
Secondly we quote according to your requirements or our suggestions;
Thirdly customer confirms the samples and laces deposit for formal order;
Fourthly we arrange the production.
5. How can I trust you ?
1. Professional & experience manufacturer;
2.Have cooperated with many famous brand;
3.Quality is our priority as we concern about what our customer purchase from us;
4.Good after-sells services.
