| Model No.: | DTY |
| Protect Wavelength: | 800-1700nm |
| Transmittance: | 40% |
| OD Value: | 800-1700nm OD4+ 900-1100nm OD5+ |
| Suit for: | 808nm, 980nm, 1064nm, 1320nm, 1470nm etc., |
| Application: | Diode Laser, ND:YAG Laser, Fiber Laser |
| LB-Rating : | 800 - 1400nm DIR LB4
1400 - 1700nm DI LB3 |
| Material: | Polycarbonate |
| Frame: | 52 |
LaserPair recommends that you wear laser safety glasses when the laser class is greater than Class 1. Laser is harmful to our eyes,please do not stare at laser lights,whether it's visible lights or invisible lights.Choose different laser safety glasses according to different laser wavelengths and working environments.
Laser Glasses Advantage:
1. Safety glasses with wrap-around design.
2. Superior quality
3. Stable, clear and flexible PVC curved body, fits the face.
4. Special for ergonomics, harmlessness, comforts, airing and flexibility.
5. Comfort to wear.
4 kinds of frames Options ( #33/#36/#52/#55)
CE Certificate:
Our laser safety glasses are all certificated by the EU National Laboratory with EN207.
Packing Details:

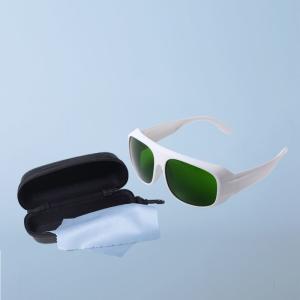

Each pair of safety glasses comes with a strong hard protective storage case and a cleaning cloth.
Related Products:
Our factory laser safety glasses strictly according to ANSI Z136 and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
| IPL | 200 – 1400nm | 10% | IPL Machine | |
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
Quality Control:
Our QC department is composed of 3 QC engineers and 5 QC assistants,with the expanding of our output,more QC staffs are needed. We strictly conduct international quality standards to meet the clients demands.
